Aoralscan 3 Intraoral Scanner

Empowering a Highly Efficient Digital Chairside Solution

Say hello to SHINING 3D‘s brand new intraoral scanner, Aoralscan 3! Exceptional, smart and elegant, Aoralscan 3 improves the overall clinical experience. It allows users to easily acquire vivid digital impressions in a faster and more accurate way.

Moreover, Aoralscan 3 comes with a wide range of different intelligent functions, guaranteeing more comfortable chairside experience and efficient clinic-lab collaboration.

  • Brand New Design
  • Faster Scan
  • Higher Accuracy
  • Longer Scan Tip
  • Greater Scan Depth
  • Powerful AI Process
  • Intuitive Communication

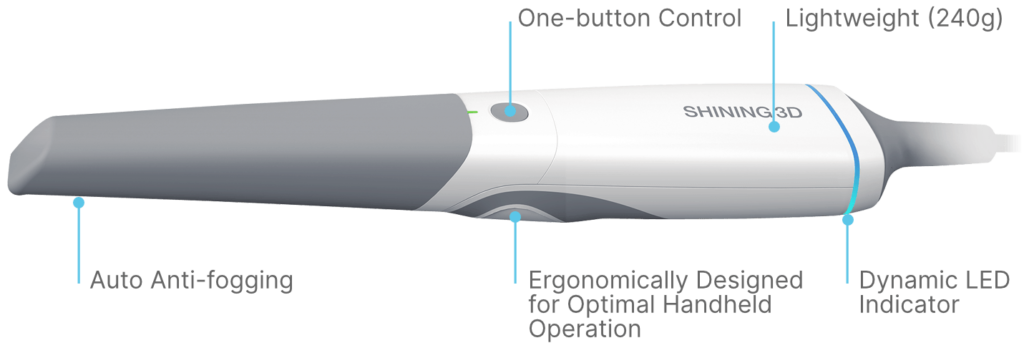

Labelled Aoralscan 3

Unboxing Video

Practical Demonstration

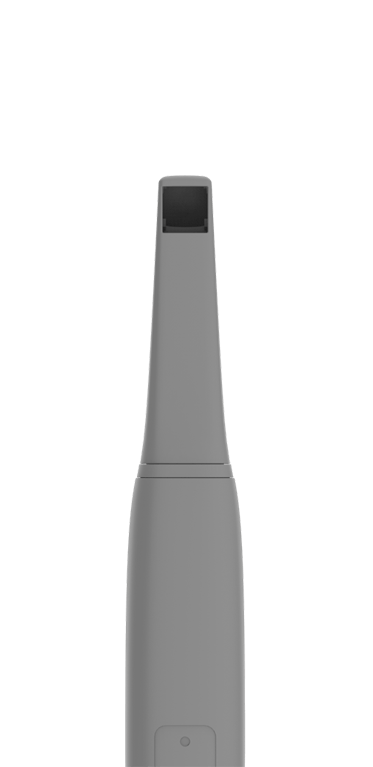

Aoralscan 2


Aoralscan 3

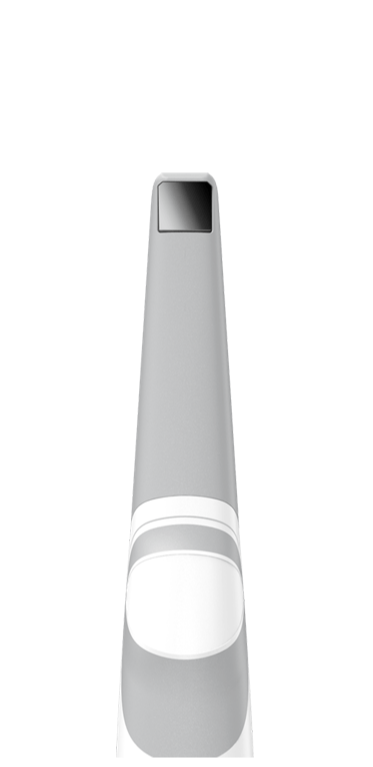

58% Greater

Scan Field Of View Than Aoralscan 2

16 X 12 mm FOV

Standard Tip

Up to 22 mm

Deep Scan Depth

Aoralscan 3 is suitable for various clinical scenarios including acquiring scan bodies and periodontal scans.

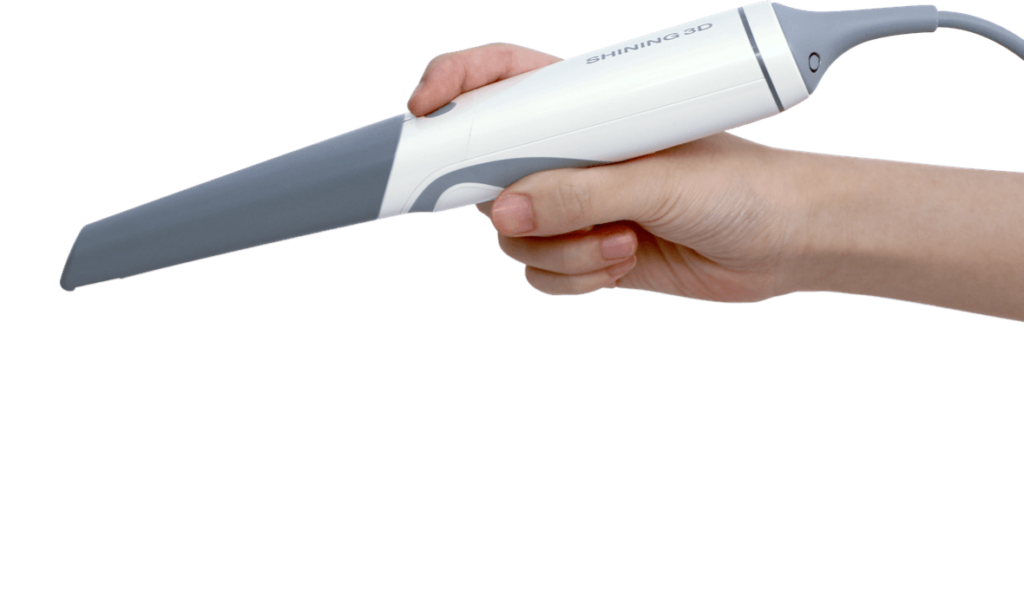

Scan Depth
Scan Depth
Tip Size
Tip Size

2 Tip Sizes

Accommodates adults and children

Autoclavable up to 100 times

Slimmer and 15% longer autoclavable scanner tips offer patients a more comfortable clinical experience.

Cart Option

The dedicated cart solution was designed to professionally round off the Aoralscan experience in a broad array of working scenarios.

With Aoralscan, I can do part of the preparation and see how parallel it is or if there is enough space. I can then resharpen it, rescan it and that’s the biggest advantage,such a procedure is unthinkable with classic prints.



Smart and Intuitive – Smooth Scanning Experience for Dentists

With powerful and intelligent data processing capabilities, Aoralscan 3 is easy to maneuver. Even beginners can get ideal scan results in minutes.

Motion Sensing

Less Contact, Much Safer

Dentists can scan with minimal contact with the computer, ensuring a safe and efficient scan experience.

AI Scan

Speed Up The Scan

Automatically identifies and filters out unnecessary soft tissue data during scanning resulting in a quicker and cleaner scan process.

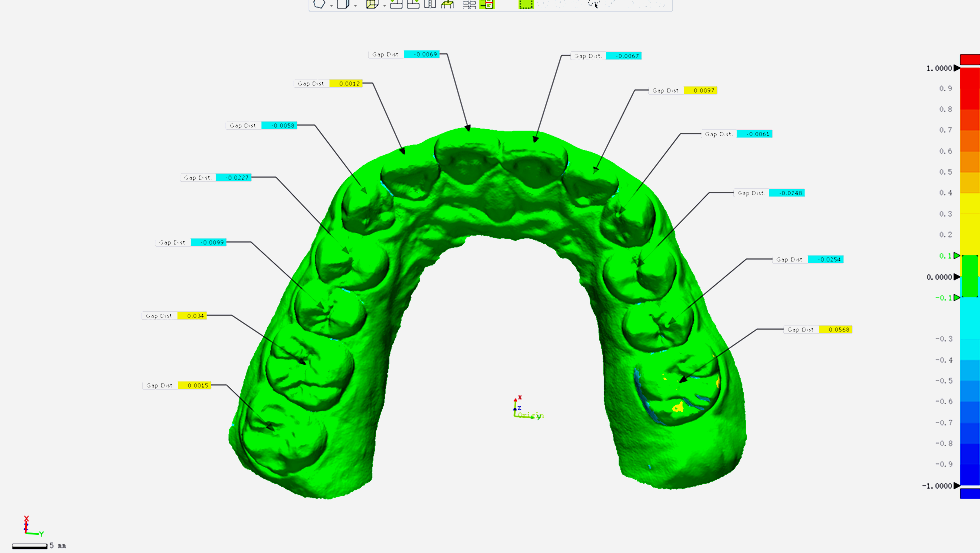

More Accurate

Thanks to optimized algorithms and imaging mechanism, Aoralscan 3 carries out more accurate and precise results by 30%, meeting the clinical needs of different applications.

30% More Accurate

25s Scan

30% Faster

Scan a single arch in just 25 seconds
Scan a full arch in 1 minute

Clinical Toolkit

The clinical toolkit assists dentists to evaluate and pre-design the scanned data in their own clinic.
It facilitates effective communication with dental labs to deliver quality dental work with high efficiency.

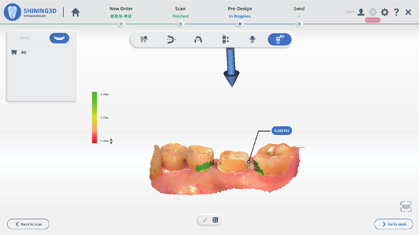

Undercut Check

Undercut Check

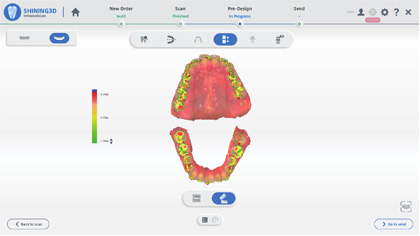

Bite Check

Bite Check

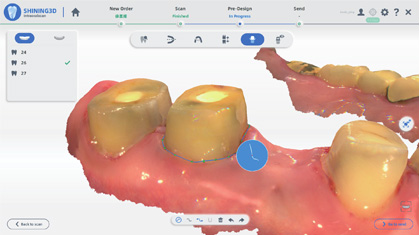

Margin Line Auto Extraction

Margin Line Auto Extraction

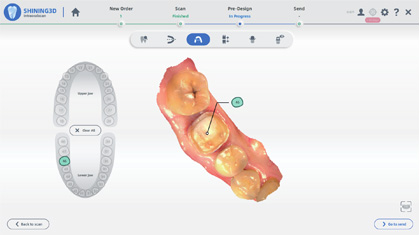

Tooth Marking

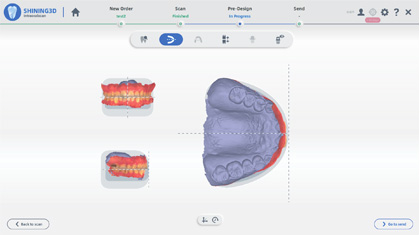

Coordinate Adjustment

Coordinate Adjustment

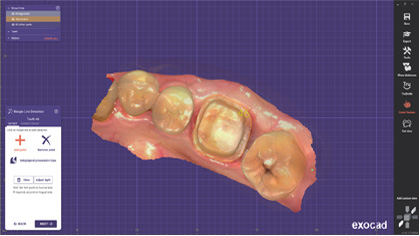

Direct Export into Exocad

Direct Export into Exocad

Cloud Platform

SHINING 3D’s cloud data platform enables data transmission,
making it convenient for data transfer and communication between clinics and dental labs.

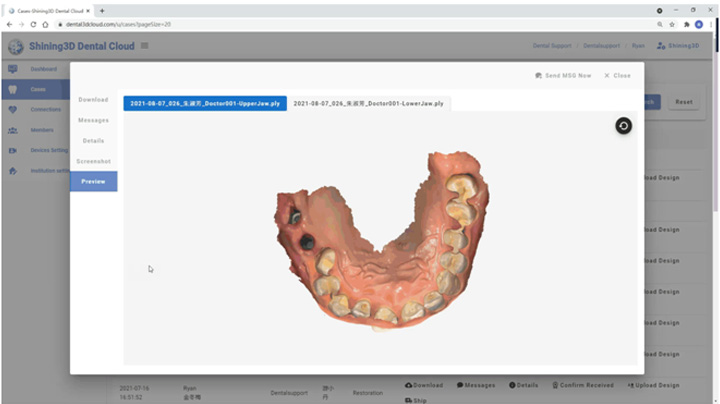

Online 3D Data Preview

Online 3D Data Preview

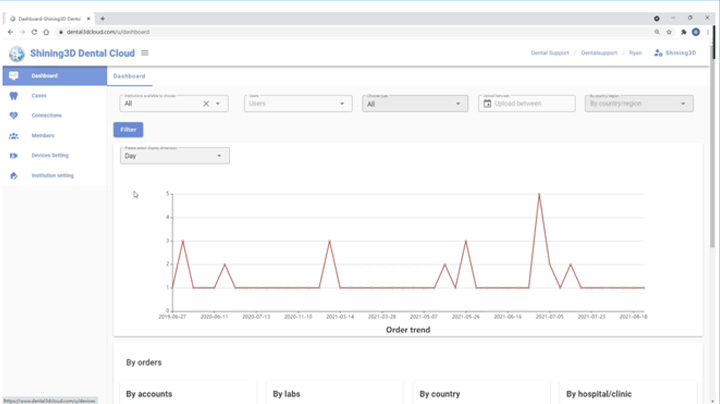

Order Statistics Analysis

Order Statistics Analysis

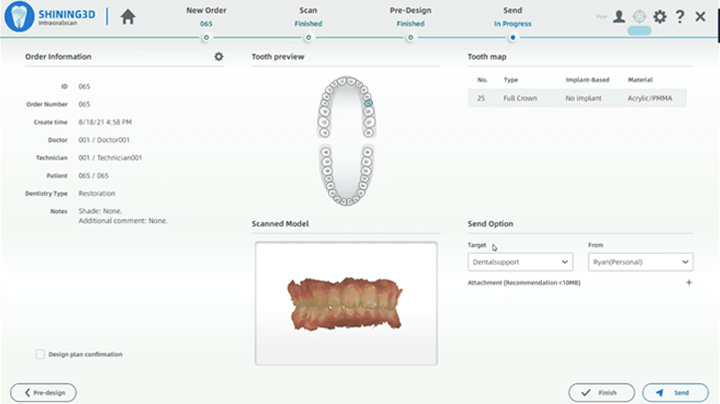

Order Tracking System

Order Tracking System

I’m really impressed by Aoralscan. It not only delivers comfort, but also displays the oral data in great detail and color on the monitor.

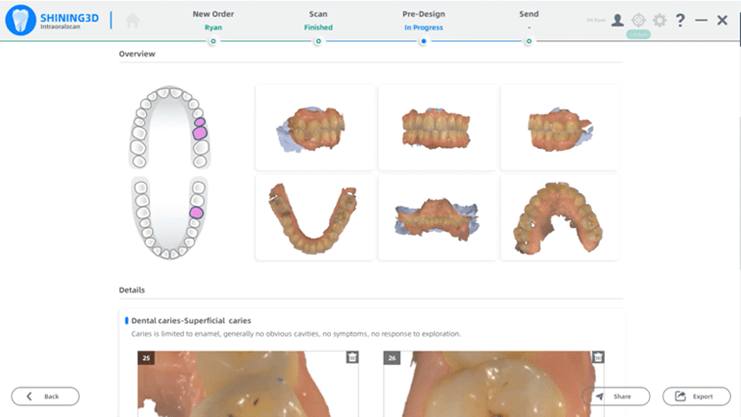

Oral Health Report

More Informed, More Engaged

Health report includes information such as existing dental caries, missing teeth, dental calculus, pigment, etc. Patients have a better understanding of their oral health.

* Coming Soon

Oral Health Report

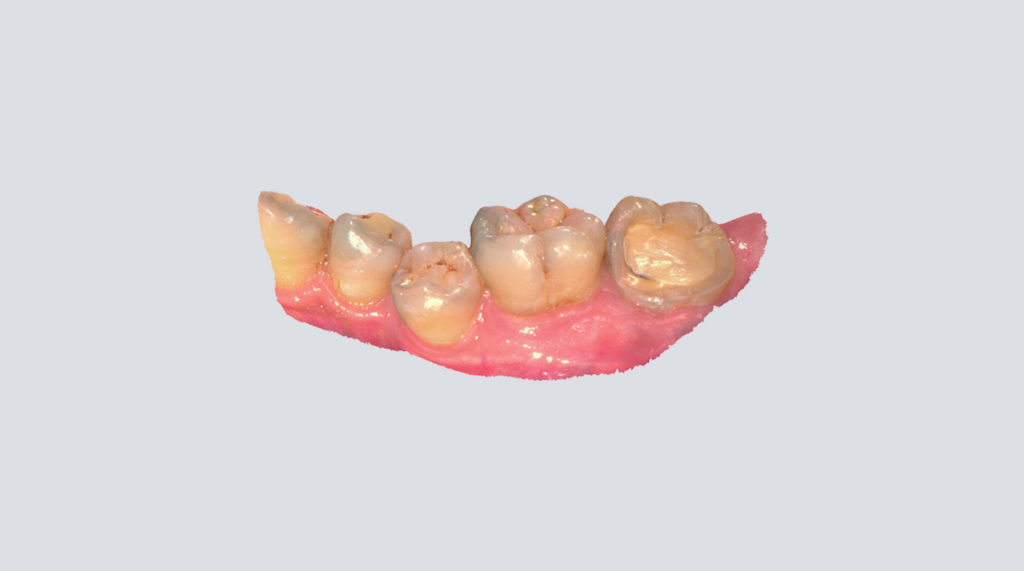

Extensive Range of Applications

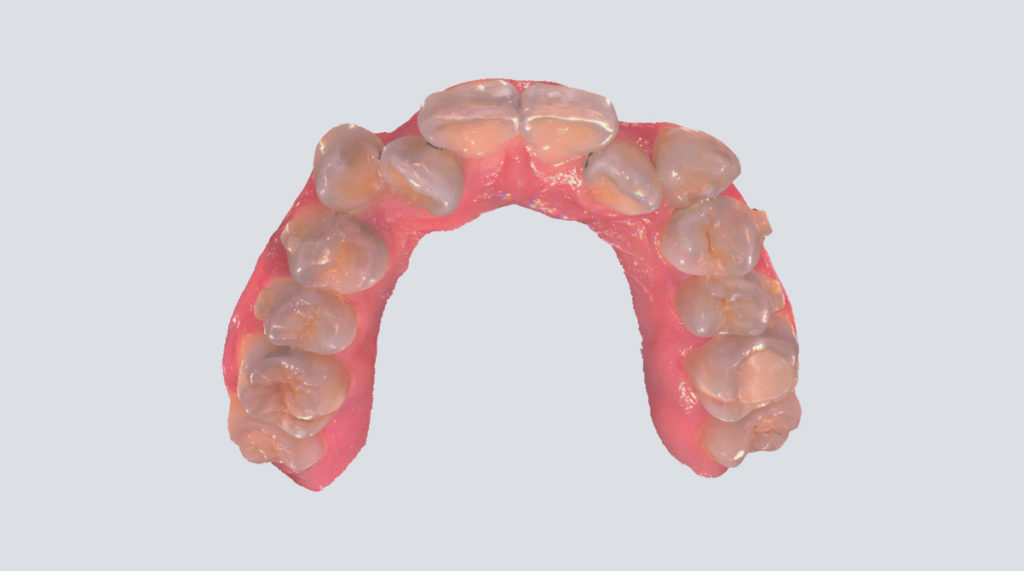

Restorations, Implants, Orthodontics

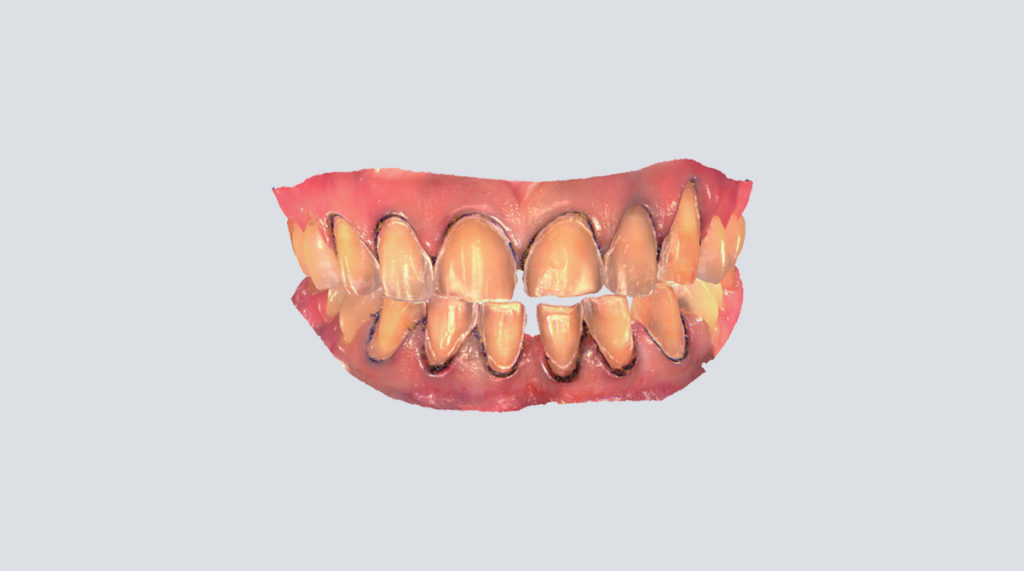

Aoralscan 3 intraoral scanner can be applied for clinical indications range spans general restorations, implants and orthodontics. Whether through same-day chairside restorations or clinic-dental lab workflow, it always provides a state-of-the-art user experience.

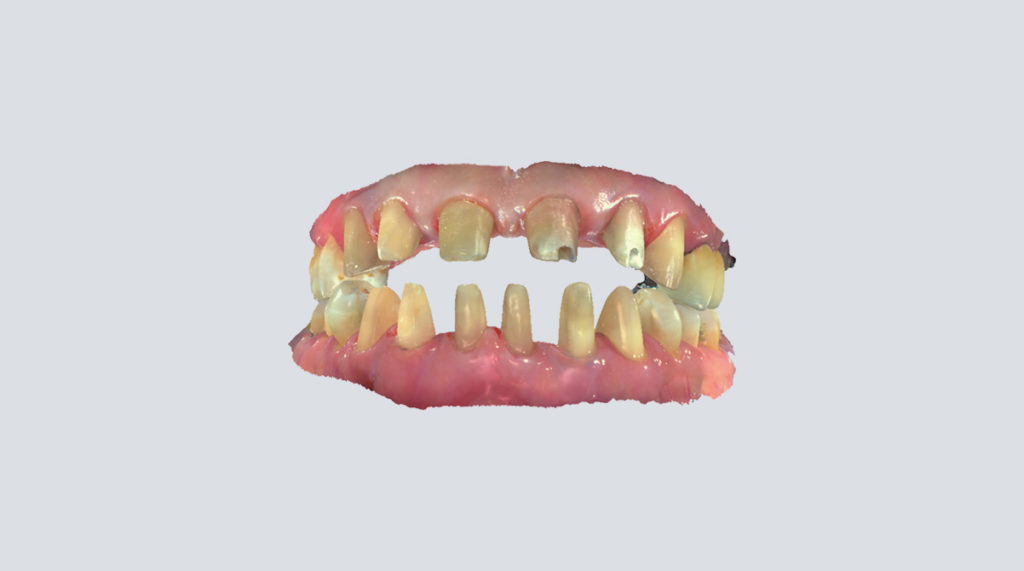

6 Unit Bridge

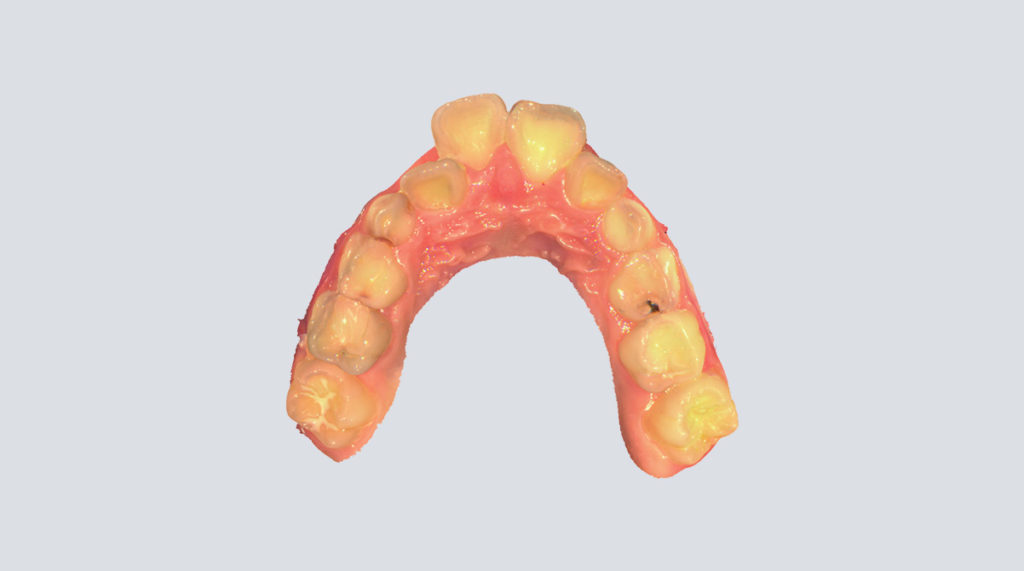

Pediatric Dental Care

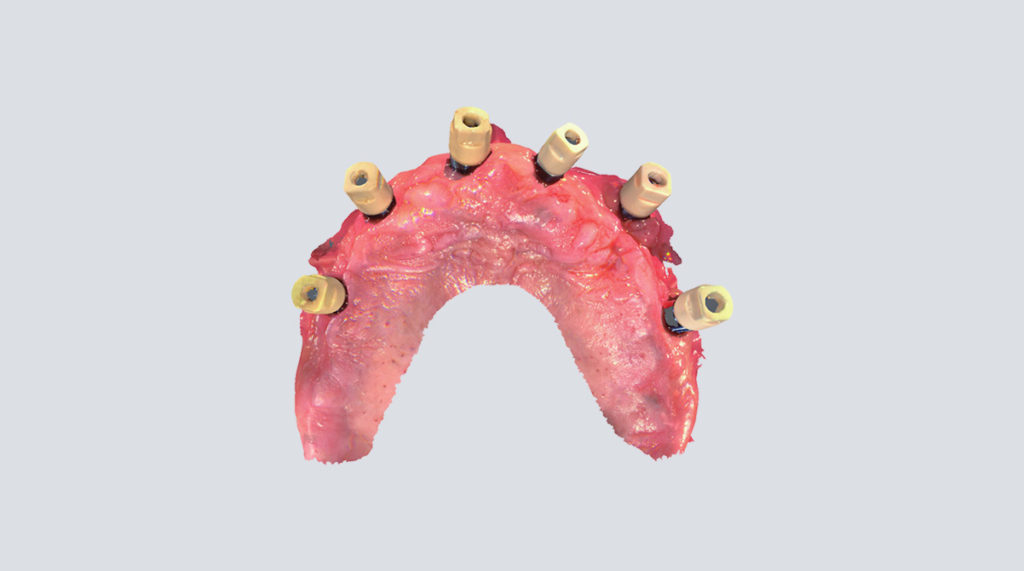

All-on-6 Implant

Customer Testimonials


Dr. George Ho from Vancouver, Canada


Dr. Luigi Rubino from Genoa, Italy


Dr. Ester Chiappetta from Treviglio, Italy

Technical Specifications

Scan Field Standard scanner tip: 16 mm x 12 mm x 22 mm
Mini scanner tip: 12 mm x 9 mm x 22 mm
Scan Principle Non-contact scanner with structured light
Dimension (L x W x H) 281 mm x 33 mm x 46 mm
Weight 240 ± 10 g (without cables)
Output STL, OBJ, PLY
Connector USB 3.0
Power Input 12V DC/3 A

Recommended PC Configuration

CPU Intel Core i7-8700 or higher
RAM 16GB or more
Hard Disk Drive 256 GB SSD or above
Graphic Card (GPU) NVIDIA ® RTX 2060 6GB DDR3 or higher
Operating System Windows 10 Professional (64-bit) or later versions of Windows operating systems
Screen Resolution 1920 x 1080, 60 Hz or higher
I/O Ports More than 2 Type-A USB 3.0 (or higher) ports
