Vaquform Desktop Vacuum Former

Best in class Thermoforming Machine

Vaquform
Vaquform DT2 is a manually operated vacuum forming machine that can produce CE certified aligners from Taglus. The powerful ceramic heaters allow you to prepare the aligner materials in a few minutes which can produce multiple aligner models. The built-in hybrid vacuum gives high accuracy and mould detail with each production cycle. Affordable, compact and easy to use, Vaquform will appeal to clinics and labs alike for aligner production.

Download Brochure

Specifications

Machine

Model DT2 (Second Generation)
Heater Ceramic Type, mid-IR band

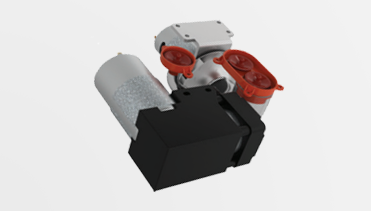

Vacuum System Built-in, Dual-stage Hybrid

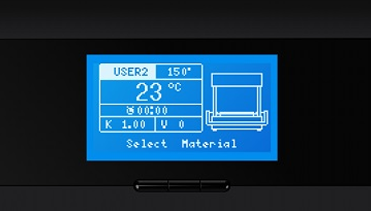

User Controls LCD Interface
Maximum Temperature 280°C
Overall Dimensions L400 × W335 × H405 mm
Weight 10kg
Input Voltage 100-240 VAC, 50/60Hz
Power Consumption 1.32kWm peak
Noise Level 65db, peak
Certifications CE, PSE, SAA, AS-NXz

Material Specifications

Sheet Size L330 × W250 mm
Thickness Range 0.2 – 3.0 mm
Supported Materials HIPS, ABS, PETG, PVC, PMMA, PE, PP, PC, EVA, Kydex®

Forming Envelope

Area L280 × W200 mm
Depth of Draw 200mm, max
