AccuFab-D1s

Dental 3D Printer

  • Fast Print Speed
  • Ultra High Accuracy and Details
  • Intelligent Print
  • Long Lifetime and Low Cost

Your Upgraded Dental 3D Printer

Based on years of experience in the dental industry, the upgraded AccuFab-D1s offers users a more intuitive and user-friendly workflow with even faster print speeds and higher accuracy. With diverse resin material options, it can meet diverse demands in restorative, implant and orthodontic applications. This is the ideal printer solution for all dental customers wishing to enter into the era of digital production.

Ultra High Accuracy & Details

Patented pixel distortion correction algorithm and full HD 1080p projector guarantee ultra-fine print accuracy and details.

Intelligent Print

Integrated with advanced print software, the AccuFab-D1s supports intelligent support creation and “one-click” printing, providing user-friendly print experience with higher repeatable consistent accuracy.

icon-one-click

One-click printing

icon-support

Intelligent support creation

Long Lifetime & Low Cost

With a long lifetime resin tank, the AccuFab-D1s reduces operation cost. The resin tank can be used for 100,000 layers of printing.

Post Curing

Easy Post-Curing

Featuring easy operation and uniform exposure, the Fab Cure maximizes the mechanical & flexural properties of the parts for further operation of dental workflows.

Versatile Applications

AccuFab-D1s can be applied in a wide range of applications, such as dental working models, wax-up, surgical guides, gingiva masks, customised impression trays, bracket transfer trays, and more.

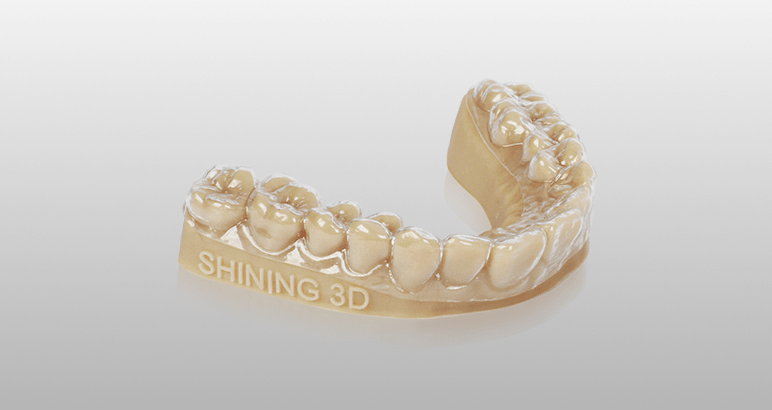

app-ortho-model
app-indirect-bonding-tray

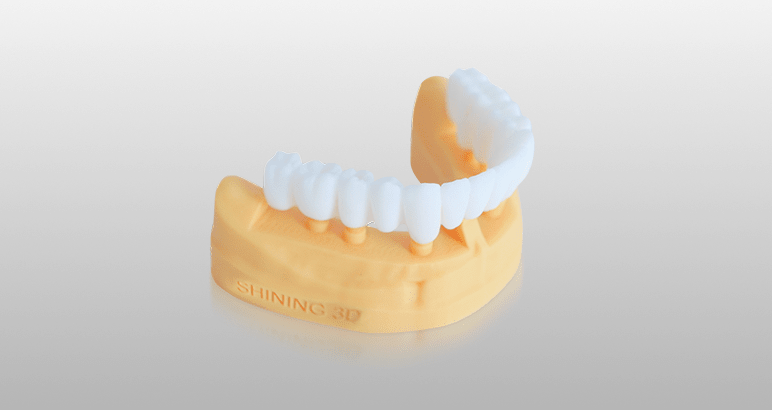

app-implant-try-on

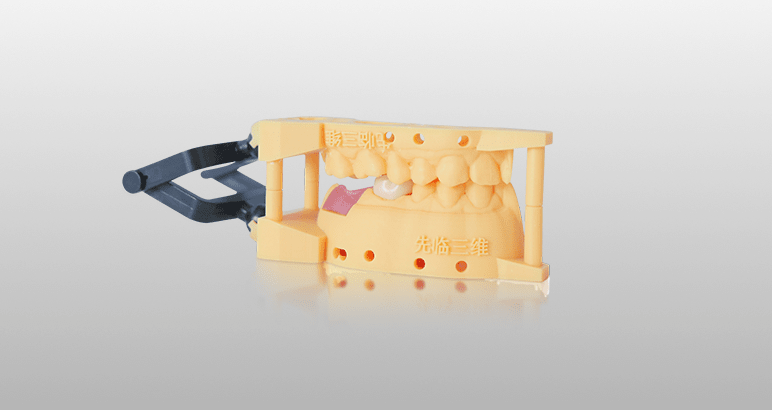

app-implant-model

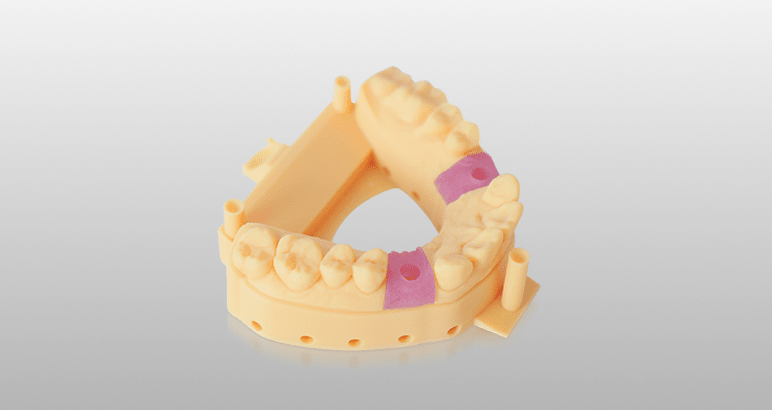

app-gingiva-mask

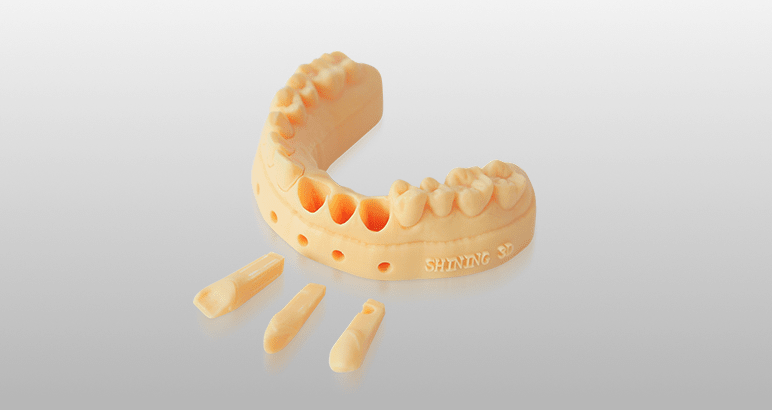

app-dental-model

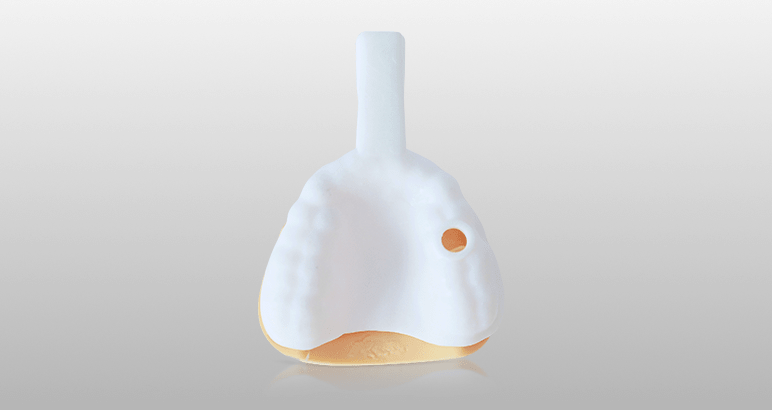

app-customized-impression-tray

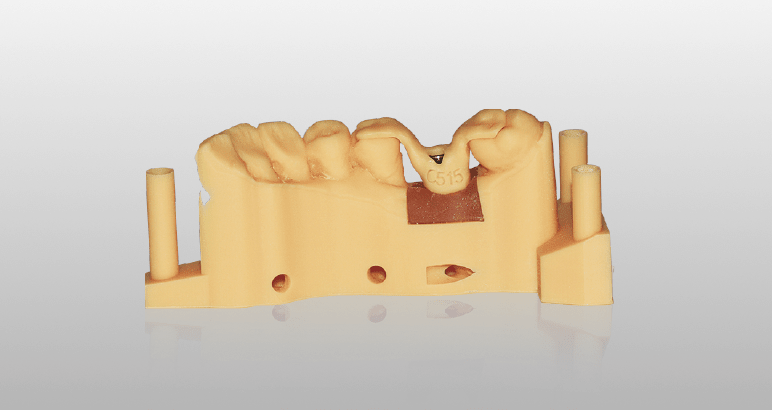

app-positioning-jig

Technical Specifications

Dimensions 396 mm x 406 mm x 755 mm
Weight 30 kg
Build Envelope 144 mm x 81 mm x 160 mm
Print Speed 50 mm / h*
Print Accuracy ±35 μm
Layer Thickness 25 μm, 50 μm, 100 μm
DLP Native Resolution 1920 x 1080, 1080 p
Material Option Open
Interface USB / Ethernet / Wi-Fi

* The print speed varies and is directly related to the different types of materials or layer thickness.

** Measured by a certain method under certain environment.

*** Notice:SHINING 3D reserves the right to introduce modifications or alterations to any of the specifications and images used in this document.
